240V 3-Axis Digital Readout SDS2-3VA with TTL Input Signal for Milling Machines and Lathes Grey

SINO 240V 3-Axis Digital Readout SDS2-3VA with TTL Input Signal for Milling Machines and Lathes Grey

Product Description:

The 1µm SINO DRO (Digital Readout) is a precision measurement device specifically designed for milling machines. With a high resolution of 1 micron, it enables precise measurements and control over milling operations. The DRO system features an intuitive user interface and configurable settings, enhancing usability and allowing for customization to meet specific needs.

Key Features:

• High Resolution: The SINO DRO offers a resolution of 1µm (1 micron), providing accurate and fine-grained measurements that enable precise positioning and control of the milling machine.
• Intuitive User-Friendly Interface: Designed with a user-friendly interface, the DRO system makes navigation and operation straightforward. Its intuitive layout and menu options ensure a seamless user experience.
• Configurable Settings: The SINO DRO allows for customizable settings to accommodate specific milling requirements. Users can adjust parameters such as scale type, axis configuration, units of measurement, and display options.
• Multiple Axis Support: The DRO system supports multiple axes, typically including the X, Y, and Z axes. It provides simultaneous measurement and display of these axes' positions, facilitating efficient milling operations.
• Clear Digital Display: The SINO DRO features a clear digital display that shows measured positions in real-time. The display is typically mounted near the milling machine's control panel for easy visibility and monitoring.
• Incremental and Absolute Measurement Modes: This DRO system supports both incremental and absolute measurement modes, allowing users to select the most suitable option for their milling applications.

Usage:

The 1µm SINO DRO is specifically designed for milling machines to enhance precision, measurement, and control during milling operations. It delivers real-time feedback on the positions of the milling machine axes, enabling operators to achieve accurate results.

Specifications of SINO SDS2-3VA digital readout system + linear scale encoder


The SDS2-3VA is a high-performance universal display console designed for milling, lathe, and grinding applications. This three-axis system supports the connection of up to three linear encoders, allowing for flexibility in combining axes or adapting inputs to fit equipment from other manufacturers. For detailed compatibility, please refer to the encoder compatibility guide below.

The console features a robust die-cast casing with a durable front panel membrane that is both tactile and long-lasting. It boasts a large, easy-to-read LCD screen for enhanced visibility.

Key features include PCD (Pitch Circle Diameter) functionality, hole line measurement, 200 memory slots for zero settings, radius/diameter display options, and tool offsets, making it a versatile tool for various machining tasks.

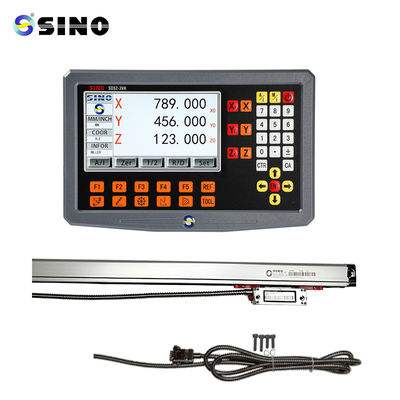

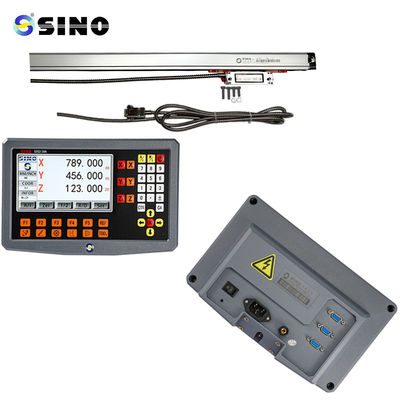

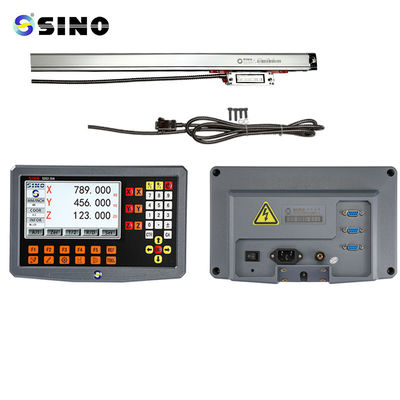

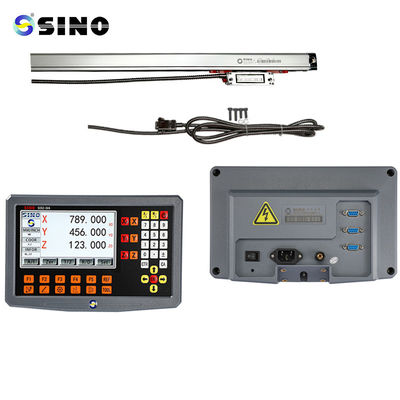

Product image /photos:

The rack in the picture is optioned, not standard product.
